Mastering the Art of Quadrajet Carburetor Adjustment
Navigating the complexities of a 4-corner idle carburetor can be a daunting task. From erratic idling to subpar performance, it's a symphony of adjustments that can leave you feeling lost in a maze. But fear not, this guide will equip you with the knowledge and technique to tame this automotive enigma, transforming your ride into a finely tuned machine.
The Tormented Engine: Symptoms of Maladjusted Idle
A poorly adjusted 4-corner idle carburetor wreaks havoc on your engine's performance. Experience frustrating symptoms such as stalling, surging, and an erratic idle. These issues hinder your driving experience and can put unnecessary strain on your engine.
The Idle Adjustment Odyssey: A Step-by-Step Guide
- Warm up the engine: Run the engine until it reaches operating temperature.
- Locate the idle screws: These screws are located on the outside of the carburetor, near the throttle plates.
- Start with the primary throttle(s): Adjust one screw at a time. Turn it clockwise to increase idle speed, counterclockwise to decrease it.
- Observe the engine response: After each adjustment, observe the idle speed and vacuum reading.
- Adjust secondary throttle(s) if needed: Once the primary idle is set, adjust the secondary throttle(s) in a similar manner.
- Fine-tune idle mixture: Adjust the mixture screws located near the idle screws. Turn clockwise to lean out the mixture, counterclockwise to enrich it.
- Test drive and reassess: Take the vehicle for a test drive to evaluate the adjustments. Repeat the process as necessary until the engine idles smoothly and performs optimally.
The Idle Carb Maestro: A Summary of Adjustment Mastery
Unlocking the secrets of 4-corner idle carburetor adjustment grants you the power to optimize your engine's performance. This guide equipped you with a step-by-step process for adjusting idle screws, secondary throttles, and mixture settings. Remember, the key lies in patience, observation, and a meticulous approach to finding the perfect balance for your engine. By mastering this art, you'll transform your unruly ride into a symphony of smooth idling and pristine performance.
Master the Art of Idle Carb Tuning with Our Easy 4-Corner Guide
Mastering the art of idle carb tuning is a fundamental skill for any automotive enthusiast looking to optimize engine performance. Whether you're fine-tuning your daily driver or preparing for a high-performance build, understanding how to adjust a 4-corner idle carburetor is essential. In this comprehensive guide, we'll delve into the intricacies of 4-corner idle carb tuning, empowering you with the knowledge and confidence to achieve perfect idle performance.

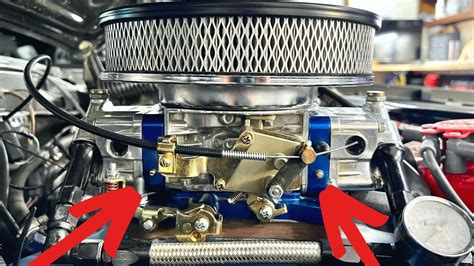

How to Adjust a 4-Corner Idle Carb
Adjusting a 4-corner idle carb involves balancing the air-fuel mixture at all four corners of the carburetor. To achieve this:
- Ensure the engine is at operating temperature.
- Locate the idle mixture screws on the carburetor.
- Adjust the screws slowly and incrementally in 1/4-turn increments.
- Monitor the idle speed and air-fuel ratio using a tachometer and air-fuel gauge.
- Aim for an idle speed within the manufacturer's specifications and an air-fuel ratio close to stoichiometric (14.7:1).
How to Tune a 4-Corner Idle Carb
Tuning a 4-corner idle carb goes beyond basic adjustment. It involves optimizing the carb's performance across the entire idle range.
- Once the basic idle mixture is set, start tuning the corner screws.
- Adjust the screws in pairs (front-right and rear-left, then front-left and rear-right).
- Listen for changes in idle quality and make small adjustments until the engine runs smoothly at all speeds below 1,500 RPM.
- Gradually reduce the idle speed and re-tune the corner screws until you achieve a stable idle at the desired speed.
How to Adjust the Idle on a 4-Barrel Carb
The idle speed on a 4-barrel carb is typically adjusted with a separate idle speed screw.
- Locate the idle speed screw on the carburetor.
- Adjust the screw clockwise to increase idle speed and counterclockwise to decrease it.
- Adjust the screw until the engine idles at the desired speed, typically around 750-900 RPM for most vehicles.
How to Adjust 4-Corner Idle on a Holley Carb
Holley carburetors have a slightly different procedure for adjusting 4-corner idle:
- Set the idle speed screw to achieve the desired idle speed.
- Adjust the primary idle mixture screws until the engine stumbles.
- Slowly back out the screws until the engine recovers.
- Repeat this process for the secondary idle mixture screws.
Conclusion:
Mastering idle carb tuning is a rewarding skill that can transform the performance and drivability of your vehicle. By following the steps outlined in this guide, you'll have the confidence to adjust and tune your 4-corner idle carb for optimal performance. Remember to always consult your vehicle's service manual for specific procedures and consult a professional if necessary.
FAQs:
Why is idle carb tuning important? Idle carb tuning ensures the engine runs smoothly at low speeds, improves fuel economy, and reduces emissions.
What tools do I need for idle carb tuning? You'll typically need a tachometer, air-fuel gauge, and various screwdrivers.
How often should I adjust my 4-corner idle carb? Regular tuning is recommended after any changes to the engine or fuel system and as needed to maintain optimal performance.
What can cause a rough idle after adjusting the 4-corner idle carb? Vacuum leaks, incorrect idle speed, or a lean or rich air-fuel mixture can all contribute to a rough idle.
Can I tune my 4-corner idle carb with a wideband air-fuel ratio gauge? Yes, using a wideband air-fuel ratio gauge can provide more precise feedback during idle tuning.
